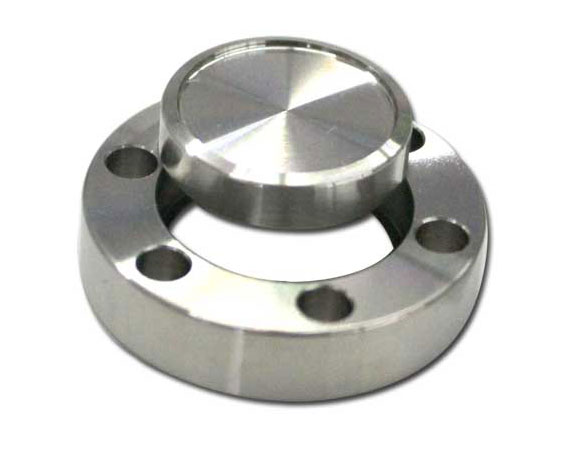

CF-盲法兰-旋转式

Catalogue PN

Type

Flange Size

A
(mm)

B
(mm)

D
(mm)

PCD
(mm)

Bolt
Holes

Diameter /
Thread
(mm)

CF-BL-133R

Thru Holes

CF1.33"/CF16

33.70

19.41

7.60

26.97

6

4.37

CF-BL-133RT

Tapped

CF1.33"/CF16

33.70

19.41

7.60

26.97

6

8-32

CF-BL-133RTM

Tapped(M)

CF1.33"/CF16

33.70

19.41

7.60

26.97

6

M4

CF-BL-212R

Thru Holes

CF2.12"/CF25

53.80

27.94

11.90

41.28

4

6.73

CF-BL-212RT

Tapped

CF2.12"/CF25

53.80

27.94

11.90

41.28

4

1/4-28

CF-BL-212RTM

Tapped(M)

CF2.12"/CF25

53.80

27.94

11.90

41.28

4

M6

CF-BL-275R

Thru Holes

CF2.75"/CF35

69.30

48.31

12.70

58.72

6

6.73

CF-BL-275RT

Tapped

CF2.75"/CF35

69.30

48.31

12.70

58.72

6

1/4-28

CF-BL-275RTM

Tapped(M)

CF2.75"/CF35

69.30

48.31

12.70

58.72

6

M6

CF-BL-338R

Thru Holes

CF3.38"/CF50

85.30

54.50

17.40

72.39

8

8.43

CF-BL-338RT

Tapped

CF3.38"/CF50

85.30

54.50

17.40

72.39

8

5/16-24

CF-BL-338RTM

Tapped(M)

CF3.38"/CF50

85.30

54.50

17.40

72.39

8

M8

CF-BL-450R

Thru Holes

CF4.50"/CF63

113.50

72.39

19.10

92.15

8

8.43

CF-BL-450RT

Tapped

CF4.50"/CF63

113.50

72.39

19.10

92.15

8

5/16-24

CF-BL-450RTM

Tapped(M)

CF4.50"/CF63

113.50

72.39

19.10

92.15

8

M8

CF-BL-462R

Thru Holes

CF4.62"/CF80

117.00

79.71

20.60

102.36

10

8.43

CF-BL-462RT

Tapped

CF4.62"/CF80

117.00

79.71

20.60

102.36

10

5/16-24

CF-BL-462RTM

Tapped(M)

CF4.62"/CF80

117.00

79.71

20.60

102.36

10

M8

CF-BL-600R

Thru Holes

CF6.00"/CF100

151.60

106.17

21.30

130.25

16

8.43

CF-BL-600RT

Tapped

CF6.00"/CF100

151.60

106.17

21.30

130.25

16

5/16-24

CF-BL-600RTM

Tapped(M)

CF6.00"/CF100

151.60

106.17

21.30

130.25

16

M8

CF-BL-675R

Thru Holes

CF6.75"/CF130

170.69

129.50

21.30

151.61

18

8.43

CF-BL-675RT

Tapped

CF6.75"/CF130

170.69

129.50

21.30

151.61

18

5/16-24

CF-BL-675RTM

Tapped(M)

CF6.75"/CF130

170.69

129.50

21.30

151.61

18

M8

CF-BL-800R

Thru Holes

CF8.00"/CF160

202.44

155.70

23.90

181.05

20

8.4
