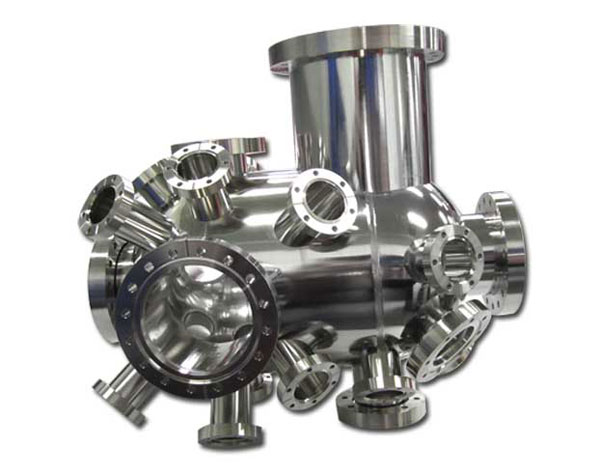

真空腔体及零组件
生产管件，阀类，真空腔体和零件等，提供高真空及超高真空管配件，以及客制化产品的服务。
D型不锈钢腔体
|
Catalogue PN |
Size |
Product Description |
|
DCH-500x450-X-X |
500mm x 450mm |
D-Chamber H500xW450 |
|
DCH-750x450-X-X |
750mm x 450mm |
D-Chamber H750xW450 |
|
DCH-1000x450-X-X |
1000mm x 450mm |
D-Chamber H1000xW450 |
箱型不锈钢腔体
|
Catalogue PN |
Size |
Product Description |
|
BCH-500x450-X-X |
500mm x 450mm |
Box Chamber H500xW450 |
|
BCH-750x450-X-X |
750mm x 450mm |
Box Chamber H750xW450 |
|
BCH-1000x450-X-X |
1000mm x 450mm |
Box Chamber H1000xW450 |
长圆柱型不锈钢腔体
|
Catalogue PN |
Size |
Product Description |
|
TCCH-254x500-X-X |
OD10” x 500mm |
Tall Cylinder Type Stainless Steel Chamber 10” X 500mm |
|
TCCH-254x750-X-X |
OD10” x 750mm |
Tall Cylinder Type Stainless Steel Chamber 10” X 750mm |
|
TCCH-305x750-X-X |
OD12” x 750mm |
Tall Cylinder Type Stainless Steel Chamber 12” X 750mm |
|
TCCH-305x1000-X-X |
OD12” x 1000mm |
Tall Cylinder Type Stainless Steel Chamber 12” X 1000mm |
|
TCCH-356x750-X-X |
OD14” x 750mm |
Tall Cylinder Type Stainless Steel Chamber 14” X 750mm |
|
TCCH-356x1000-X-X |
OD14” x 1000mm |
Tall Cylinder Type Stainless Steel Chamber 14” X 1000mm |
短圆柱型不锈钢腔体
|
Catalogue PN |
Size |
Product Description |
|
SCCH-254x100 |
OD10” x 100mm |
Short Cylinder Type Stainless Steel Chamber 10”x100mm |
|
SCCH-305x200 |
OD12” x 200mm |
Short Cylinder Type Stainless Steel Chamber 12”x200mm |
|
SCCH-356x200 |
OD14” x 200mm |
Short Cylinder Type Stainless Steel Chamber 14”x200mm |
|
SCCH-457x250 |
OD18” x 250mm |
Short Cylinder Type Stainless Steel Chamber 18”x250mm |
|
SCCH-610x250 |
OD24” x 250mm |
Short Cylinder Type Stainless Steel Chamber 24”x250mm |
