AD转接头
产品介绍：

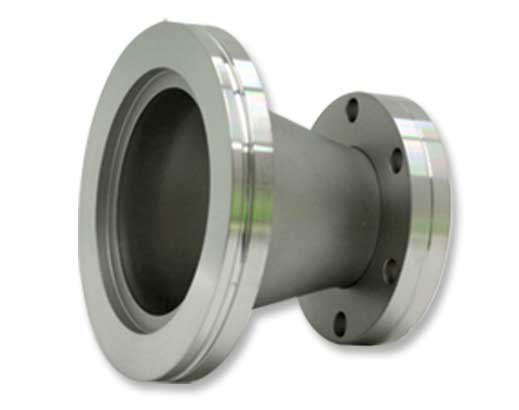

ISO / CF 同心缩径转接头
ISO to CF FLANGE CONICAL ADAPTOR
材质：不锈钢304/L
管表面处理：喷砂
|
Catalogue PN |
Size |
A |
B |
C |
|
AD-C-ISOCF-63x275 |
ISO63-CF2.75 |
ISO63 |
CF2.75 |
71.90 |
|
AD-C-ISOCF-63x338 |
ISO63-CF3.38 |
ISO63 |
CF3.38 |
72.30 |
|
AD-C-ISOCF-63x462 |
ISO63-CF4.62 |
ISO63 |
CF 4.62 |
105.50 |
|
AD-C-ISOCF-63x600 |
ISO63-CF6.00 |
ISO63 |
CF 6.00 |
109.50 |
|
AD-C-ISOCF-80x275 |
ISO80-CF2.75 |
ISO80 |
CF 2.75 |
103.70 |
|
AD-C-ISOCF-80x338 |
ISO80-CF3.38 |
ISO80 |
CF 3.38 |
104.10 |
|
AD-C-ISOCF-80x450 |
ISO80-CF4.50 |
ISO80 |
CF 4.50 |
107.90 |
|
AD-C-ISOCF-80x600 |
ISO80-CF6.00 |
ISO80 |
CF 6.00 |
109.50 |
|
AD-C-ISOCF-100x338 |
ISO100-CF3.38 |
ISO100 |
CF 3.38 |
104.10 |
|
AD-C-ISOCF-100x450 |
ISO100-CF4.50 |
ISO100 |
CF 4.50 |
107.90 |
|
AD-C-ISOCF-100x462 |
ISO100-CF4.62 |
ISO100 |
CF 4.62 |
105.50 |
