BW焊接式管件
产品介绍：

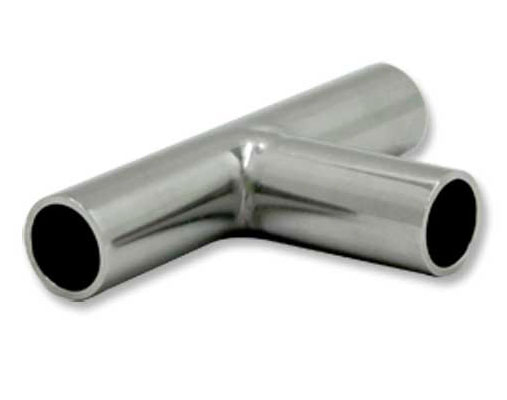

焊式同径三通
WELD EQUAL TEES
材质：不锈钢304/L
管表面处理：振动研磨
|
Catalogue PN |
Tube OD |
Wall Thickness |
A |
B |
|
BW-ET-050 |
1/2" |
1.65 |
38.10 |
19.05 |
|
BW-ET-075 |
3/4" |
1.65 |
50.80 |
25.40 |
|
BW-ET-075L1 |
3/4" |
1.65 |
72.40 |
36.20 |
|
BW-ET-075L2 |
3/4" |
1.65 |
95.20 |
47.60 |
|
BW-ET-100 |
1.0" |
1.65 |
91.40 |
45.70 |
|
BW-ET-100L |
1.0" |
1.65 |
95.20 |
47.60 |
|
BW-ET-150 |
1.5" |
1.65 |
114.40 |
57.20 |
|
BW-ET-150L |
1.5" |
1.65 |
122.42 |
61.21 |
|
BW-ET-200 |
2.0" |
1.65 |
132.58 |
66.29 |
|
BW-ET-200L |
2.0" |
1.65 |
152.40 |
76.20 |
|
BW-ET-250 |
2.5" |
1.65 |
152.40 |
76.20 |
|
BW-ET-250L1 |
2.5" |
1.65 |
163.40 |
81.70 |
|
BW-ET-250L2 |
2.5" |
1.65 |
190.24 |
95.12 |
|
BW-ET-300 |
3.0" |
1.65 |
165.20 |
82.60 |
|
BW-ET-300L |
3.0" |
1.65 |
183.40 |
91.70 |
|
BW-ET-400 |
4.0" |
2.11 |
196.80 |
98.40 |
|
BW-ET-400L1 |
4.0" |
2.11 |
203.40 |
101.70 |
|
BW-ET-400L2 |
4.0" |
2.11 |
247.56 |
123.78 |
|
BW-ET-600 |
6.0" |
2.77 |
254.00 |
127.00 |
|
BW-ET-600L |
6.0" |
2.11 |
307.80 |
153.90 |
