KF法兰&管件
产品介绍：

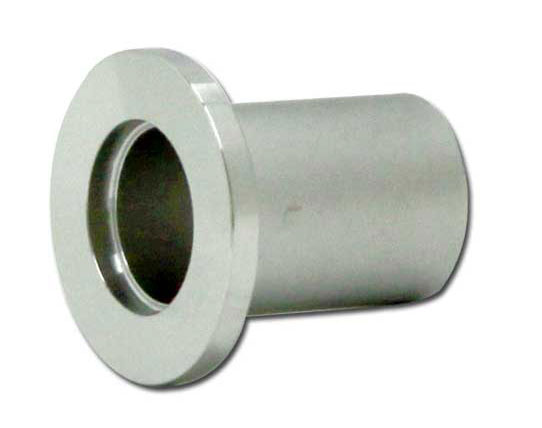

KF 半短管
KF HALF NIPPLES
材质：不锈钢304/L
|
Catalogue PN |
Size |
Diagram |
A |
B |
C |
D |
E |
|
KF-HN-10 |
KF 10-1.25” |
A |
30.00 |
12.20 |
9.40 |
12.70 |
31.75 |
|
KF-HN-16 |
KF 16-1.15” |
A |
30.00 |
17.20 |
15.80 |
19.10 |
29.21 |
|
KF-HN-16-1 |
KF 16-1.50” |
A |
30.00 |
17.20 |
15.80 |
19.10 |
38.10 |
|
KF-HN-25 |
KF 25-2.03” |
B |
40.00 |
26.20 |
22.10 |
25.40 |
51.56 |
|
KF-HN-25-1 |
KF 25-2.04” |
A |
40.00 |
26.20 |
22.10 |
25.40 |
51.80 |
|
KF-HN-40 |
KF40-2.40” |
B |
55.00 |
41.20 |
34.80 |
38.10 |
60.96 |
|
KF-HN-40-1 |
KF40-2.46” |
B |
55.00 |
41.20 |
34.80 |
38.10 |
62.50 |
|
KF-HN-50 |
KF50-3.15” |
B |
75.00 |
52.20 |
47.50 |
50.80 |
80.01 |
|
KF-HN-50-1 |
KF50-3.21” |
B |
75.00 |
52.20 |
47.50 |
50.80 |
81.50 |
