产品介绍：

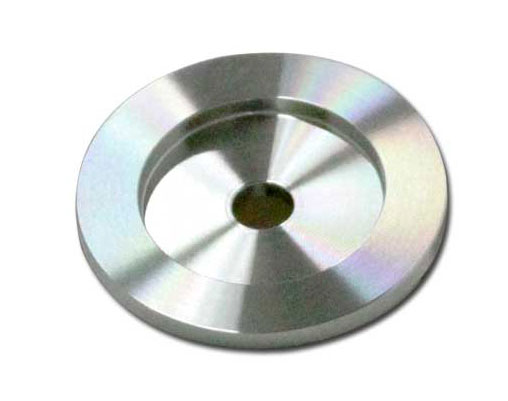

KF 通径法兰
KF BORED FLANGES
材质：不锈钢304/L
|
Catalogue PN |
Size |
Diagram |
A |
B |
C |
D |
E |
|
KF-BF-10x038 |
KF 10-3/8” |
A |
30.00 |
12.20 |
- |
9.65 |
5.10 |
|
KF-BF-16x025 |
KF16-1/4” |
A |
30.00 |
17.20 |
- |
6.50 |
5.10 |
|
KF-BF-16x038 |
KF16-3/8” |
A |
30.00 |
17.20 |
- |
9.65 |
5.10 |
|
KF-BF-16x050 |
KF16-1/2” |
B |
30.00 |
17.20 |
10.16 |
12.95 |
5.10 |
|
KF-BF-16x075 |
KF16-3/4” |
B |
30.00 |
17.20 |
16.51 |
19.30 |
4.40 |
|
KF-BF-25x025 |
KF25-1/4” |
A |
40.00 |
26.20 |
- |
6.50 |
5.10 |
|
KF-BF-25x038 |
KF25-3/8” |
A |
40.00 |
26.20 |
- |
9.65 |
5.10 |
|
KF-BF-25x050 |
KF25-1/2” |
B |
40.00 |
26.20 |
10.16 |
12.95 |
5.10 |
|
KF-BF-25x075 |
KF25-3/4” |
B |
40.00 |
26.20 |
16.51 |
19.30 |
5.10 |
|
KF-BF-25x100 |
KF25-1.0” |
B |
40.00 |
26.20 |
22.88 |
25.65 |
4.90 |
|
KF-BF-40x025 |
KF40-1/4” |
A |
55.00 |
41.20 |
- |
6.50 |
5.10 |
|
KF-BF-40x038 |
KF40-3/8” |
A |
55.00 |
41.20 |
- |
9.65 |
5.10 |
|
KF-BF-40x050 |
KF40-1/2” |
B |
55.00 |
41.20 |
10.16 |
12.95 |
5.10 |
|
KF-BF-40x075 |
KF40-3/4” |
B |
55.00 |
41.20 |
16.51 |
19.30 |
5.10 |
|
KF-BF-40x100 |
KF40-1.0” |
B |
55.00 |
41.20 |
22.88 |
25.65 |
5.10 |
|
KF-BF-40x150 |
KF40-1.5” |
B |
55.00 |
41.20 |
35.58 |
38.35 |
5.10 |
|
KF-BF-50x025 |
KF50-1/4” |
A |
75.00 |
52.20 |
- |
6.50 |
5.10 |
|
KF-BF-50x038 |
KF50-3/8” |
A |
75.00 |
52.20 |
- |
9.65 |
5.10 |
|
KF-BF-50x050 |
KF50-1/2” |
B |
75.00 |
52.20 |
10.16 |
12.95 |
5.10 |
|
KF-BF-50x075 |
KF50-3/4” |
B |
75.00 |
52.20 |
16.51 |
19.30 |
5.10 |
|
KF-BF-50x100 |
KF50-1.0” |
B |
75.00 |
52.20 |
22.88 |
25.65 |
5.10 |
|
KF-BF-50x150 |
KF50-1.5” |
B |
75.00 |
52.20 |
35.58 |
38.35 |
5.10 |
|
KF-BF-50x200 |
KF50-2.0” |
B |
75.00 |
52.20 |
48.26 |
51.05 |
5.10 |
